Fedar Digital Sublimation Textile Printer FD1900, sublimation printer with EPSON 4720 head, high quality sublimation printer, fast speed sublimation printing machine

Main Features Printer Details Specification Related Videos Application Inquiry

Main Features

High Precision Printhead

2 Epson I3200-A1 printhead,2 pass speed can reach up to 98㎡/h.

Aluminum Beam and Platform

Industrial grade aluminum alloy platform guarantees long life and efficient printing.

Intelligent Ink Starving Alarm

Intelligent ink deficiency alert reduces the tediousness of frequently checking ink margin, and promptly reminds to add ink to ensure the continuity of printing work.

Stable Media Feeding and Take-up System

Fully automatic feeding and take-up media system.Dual-motor drive offers strong power to handle non-stop work and high-precision media movement.

Adopting Advanced Capping Station

Equipped with advanced intelligent auto printhead cleaning and moisturizing device,which can pump ink well and keep the ink flow fluently.

Intelligent Foggy Printing & VSDT Printing

Unique two-dimension intelligent foggy and wave-foggy function, and VSDT variable droplet techonology, improve printing quality obviously.

Printer Details

Specially Designed Car

The height of double printheads can be arbitrarily adjusted.Anti-scratch function on both sides of the car reduces the printhead damage caused by paper warping.

THK Mute Guide Rail

More stable running,longer working life,lower noise.higher resolution,and fewer errors in length.

Intelligent Air-heat Dryer

Intelligent air-heat integrated dryer, two-stage heating, middle warm air and smart start-stop technology, ensure the drying performance and more energy-saving at the same time.

Disc Ink Filter

Remove the impurities in ink effectively, ensure smooth ink supply and protect the nozzles.

Large Capacity Ink Reservoirs

Four units of 3L super large capacity ink reservoirs provide ink independently and continuously, which guarantees the long-term continuity of ink output.

Chinese Leadshine Motor

High Quality Chinese most famous leadshine motor, longer working life, high resolution, low length error, more stable.

Paper Press Roller

The use of American fluorine rubber paper press roller to ensure the smoothness of the material when printing,guaranteeing excellent output.

Germany IGUS Ink Chain

Imported Germany IGUS ink chain.Super precision with low friction noise.

Specification

Model	FD1900
Printhead	Type:Epson I3200-A1 Micropiezo Printhead
	Quantity:2
	Resolution:3200DPI
	Head Property:Auto-clean and moisturize
Speed	2pass 98㎡/h
	3pass 64㎡/h
	4pass 50㎡/h
	6pass 32㎡/h
Printing Width	1900mm
Ink	Sublimation Ink Color:CMYK Moisture Mode:Auto-capping Pump Moisture
Media	Transfer Paper
RIP Software	Maintop6.0/Photoprint 12/Onyx 18
Image Format	JPG,TIFF,BMP,PDF...
Computer System	Win7 Win10
Transmit Port	Gigabit LAN
Dryer	Extra Heating System
Media Transfer	Double Power Take up Media System
Computer Hardware Configuration	Hard Disk.:500G GPU:ATI Discrete GPU CD-ROM:DVD ROM Memory:4G or more than 4G CPU:Intel i5 processor
Optional Device	Ink Level Alarm System Auto Tension Take-up Media System
Work Environment	Temperature:25-35℃ Humidity:35-65%
Power	210-230VAC Frequency:50/60 HZ RC:16A Printer:1000W Dryer:3500W
Machine Size	Machine Size:29408501550mm Package Size:3060940970mm
Weight	N.W.:240KG G.W.:280KG

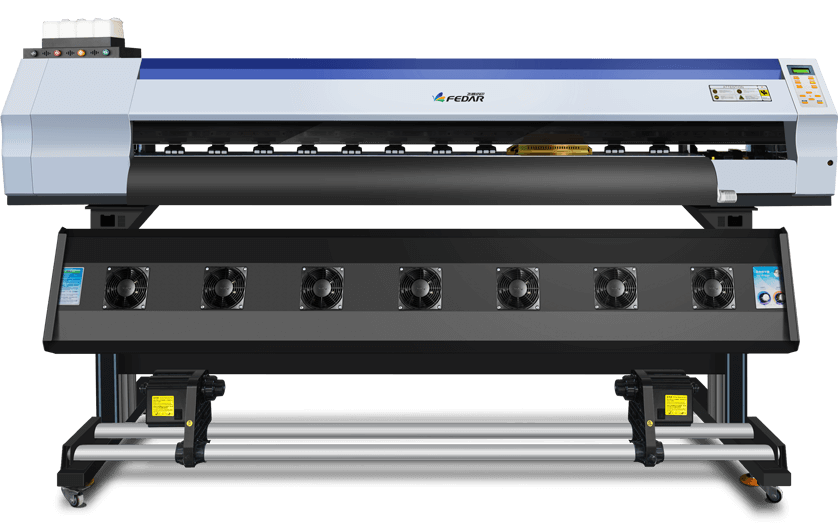

2 Heads & 1.9m FD1900
