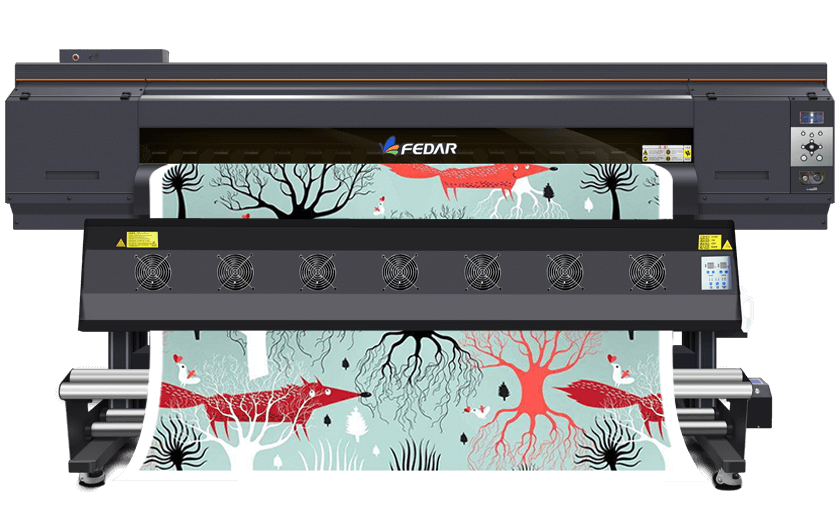

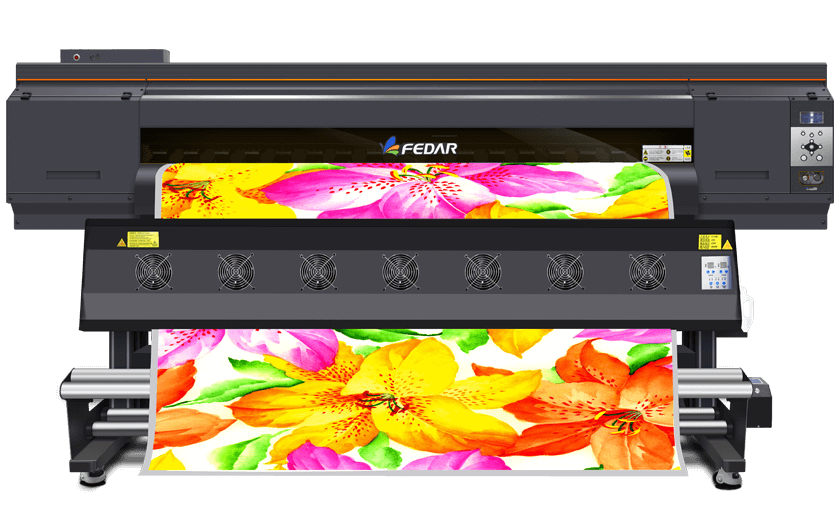

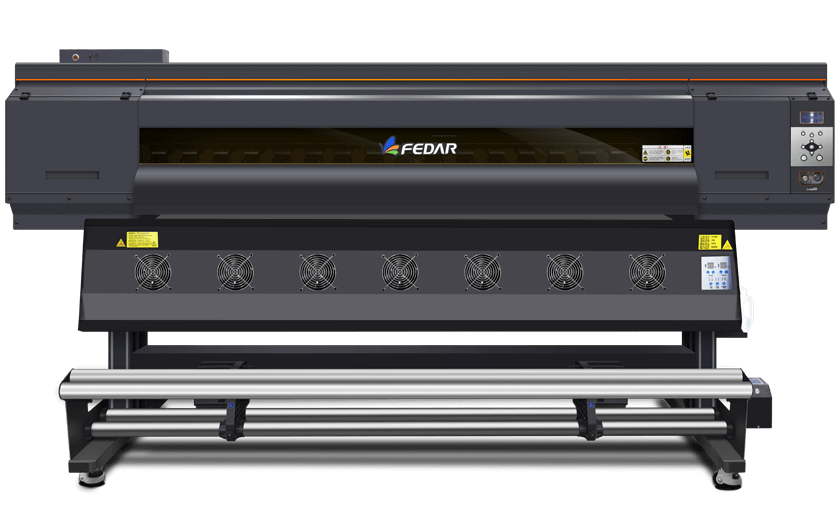

Fedar Digital Sublimation Textile Printer FD5193E

Main Features Printer Details Specification Related Videos Application Inquiry

Main Features

High Precision Printhead

3 Epson I3200-A1 printhead,2 pass speed can reach up to 120㎡/h

Advanced Capping Station

Equipped with advanced intelligent auto printhead cleaning and moisturizing device,which can pump ink well and keep the ink flow fluently.

Intelligent Ink Starving Alarm

Reduces the tediousness of frequently checking the remaining amount of ink, and at the same time reminds to add ink in time to ensure the continuity of printing work.

Intelligent Foggy Printing & VSDT Printing

Unique two-dimension intelligent foggy and wave-foggy function, and VSDT variable droplet techonology, improve printing quality obviously.

Stable Media Feeding and Take-up System

Convenient and fast, the printing media is quickly stored, equipped with automatic paper measurement and anti-rubbing function, the consumables are warped, printing is automatically paused to prevent scratching the printhead.

Wide Application

With help of heat transfer machine,printed images can be transferred to many different non-elastic material, such as polyester,chiffon, silk, and flag banner. No limit on the patterns makes it a good choice in decoration, garment and advertising field.

Printer Details

Specially Designed Car

The position of the print head can be adjusted according to different printing medias, and anti-collision devices at both ends to give the print head more comprehensive safety protection.

THK Mute Guide Rail

Using Japanese THK mute linear guide rail imported from Japan to effectively reduce the resistance and noise during the operation of the printer.

Large Capacity Ink Reservoirs

Four units of 3L super large capacity ink reservoirs provide ink independently and continuously, which guarantees the long-term continuity of ink output.

Intelligent Air-heat Dryer

Intelligent air-heat integrated dryer, two-stage heating, middle warm air and smart start-stop technology, ensure the drying performance and more energy-saving at the same time.

Chinese Leadshine Motor

The two-way Leadshine brushless motor has higher accuracy, smaller length error and more stable performance.

Germany IGUS Ink Chain

Imported Germany IGUS ink chain,high quality, to ensure the good completion of printing work.

Fluororubber Pressure Roller

US fluororubber pressure roller prevents static electricity from flying ink, prints more accurately and rejects wrinkles

Two-level Ink Supply System

Adopt two-level ink supply system, continuous printing for a long time to ensure the output quality of the picture.

Specification

Printer Model		FD5193E
Printhead	Type	EPSON I3200-A1
	Nozzle Qty	3pcs printheads
	Height to Platform	2-5mm
Printing Speed		2pass 120sqm/h
		3pass 85sqm/h
		4pass 65sqm/h
		6pass 45sqm/h
Ink	Color	C M Y K
	Type	Dye Sublimation
	supply method	Siphoning
Max Printing Width		1900mm
Printing Media		Transfer Paper
Media Transfer Method		Dual-drive tension take-up system,Auto air shaft feeding system
Drying Method		External,Intelligent and air-heat Integrated drying system
Moisture Mode		Fully sealed auto moisturing and cleaning
RIP Software		Maintop6.0,Photoprint,Onyx,Wasatch and NeoStampa and etc.
Image Format		JPG,TIF,PDF,BMP and etc.
Computer	System	WIN7 64bit/WIN10 64bit
	Hardware	Hard disk:500G (system disk more than 100G) GPU:ATI Discrete CD-ROM:DVD ROM Memory:4G or more CPU:Intel i5/i7 processor
	Transmit Port	Gigabit LAN
Work Environment		Temperature 20-35 centi degree; Humidity 35-65%
Power	Input Voltage	210-230VAC 50/60HZ 16A
	Printing system	1000W
	Drying system	Max power 3500W
Dimension	Printer Dimension	30668801553mm
Dimension	Packing Dimension	32509501060mm
Weight	Net Weight	351KG
Weight	Gross Weight	482KG

3 Heads & 1.9m FD5193E
