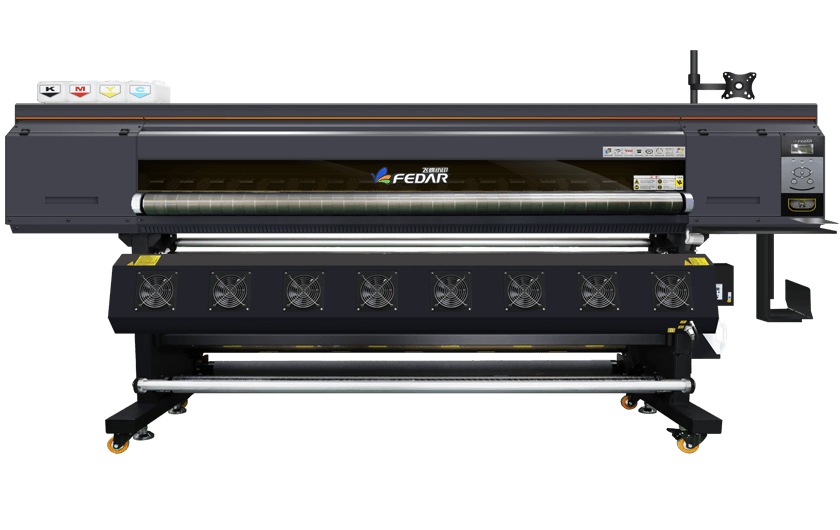

Fedar Digital Sublimation Textile Printer FD5228E

Main Features Printer Details Specification Related Videos Application Inquiry

Main Features

Control Panel

Simple and user-friendly control panel, easy to complete the printing work.

Germany IGUS Ink Chain

Imported ink chain, high quality, to ensure the smooth completion of printing.

Capping Station

Fully enclosed capping station, long-term moisturizing, with automatic cleaning function.

Chinese Leadshine Motor

Brushless motor, linear decoding, large driving force, suitable for long time work.

Printer Details

Intelligent Heating System

Intelligent infrared fan, which can meet heating and blowing at the same time, increase the drying speed of the screen.

Paper Detection Device

Automatically detect whether the printing paper is finished, it is more intelligent, and better protects print head.

THK Guide Rail

Mute linear guide, long service life, effectively reducing resistance and noise of car during high-speed movement.

Specially Designed Car

Anti-collision devices at both ends of car. When encountering obstacles during printing, printing will stop automatically.

Epson Original Printhead

8pcs Epson I3200-A1 print heads, VSDT technology, can reduce the graininess of picture, smooth color transition and high saturation.

Take-up System

Paper loading system with high load-bearing capacity adopts more efficient rubber rollers to feed the paper, and the paper is evenly loaded and unloaded.

Suction Heating Platform

Make the material better adsorb on the platform, ensure the flatness of the material, improve the smoothness of paper, and ensure the stability of printing.

Ink supply system

Large 4.5L ink cartridge, with secondary ink supply system, equipped with automatic alarm device for detecting liquid level of main cartridge.

Specification

Printer Model		FD5228E
Printhead	Type	EPSON I3200-A1
	Nozzle Qty	8pcs printheads
Printing Speed		1 pass	385 sqm/h
		2 pass	190 sqm/h
Ink	Color	C M Y K
	Type	Dye Sublimation
Printing Width		2200mm
Printing Media		Transfer Paper
Media Transfer Method		Inflatable Roller Auto Feeding and Take-up Media System
Drying Method		External Independent Fan Dryer
Moisture Mode		Full Seal Auto Moisture and Cleaning
RIP Software		Maintop6.0(standard equipped),Photoprint 19,Onyx 19,Wasatch, NeoStampa
Image Format		JPG,TIF,PDF,BMP and etc.
Computer	System	WIN7 64bit/WIN10 64bit
	Hardware	Hard disk:500G or more GPU:ATI Mobility Memory:4G Random Access Memory:8G CPU:i7 Processor or above
Transmit Port		Gigabit Ethernet Port
Work Environment		Temperature:18-35℃; Humidity:35-65%
Power		Input Voltage	210-230VAC 50/60HZ 10A
		Printing system	1500W
		Drying system	Max 7200W
Printer Dimension		355011001750mm
Packing Size		Machine:34609501115mm
		Inflatable Roller Package:318010301060mm

8 Heads & 2.2m FD5228E
