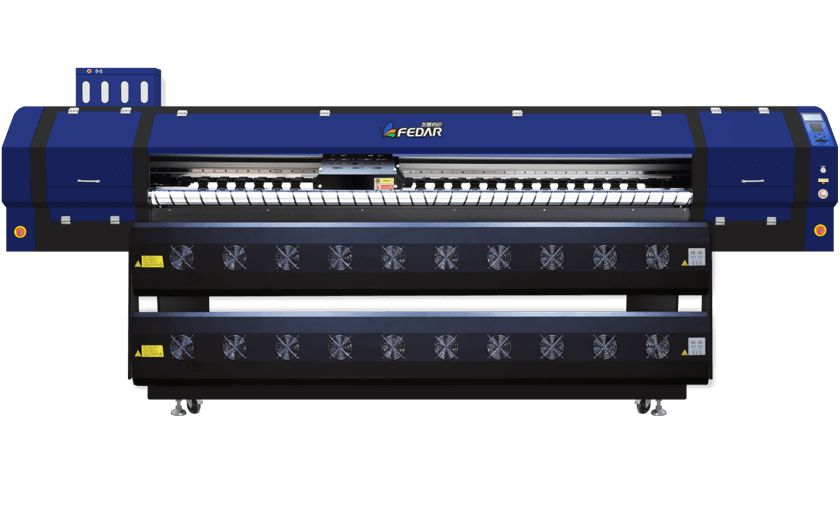

Fedar Dye Sublimation Textile Printer FD5268E

Main Features Printer Details Specification Related Videos Application Inquiry

Main Features

High Resolution Printhead

8 Epson I3200-A1 printhead,1 pass speed can reach up to 400㎡/h

Two-level Ink Supply System

Adopt two-level ink supply system to ensure continuous printing for a long time.

Intelligent Ink Starving Alarm

Reduces the tediousness of frequently checking the remaining amount of ink, and at the same time reminds to add ink in time.

Stable Media Feeding and Take-up System

Convenient and fast, the printing media is quickly stored, equipped with automatic paper measurement and anti-rubbing function.

Advanced Capping Station

The fully-closed capping station with automatic lifting, tighter sealing and long-term moisturizing. Automatic cleaning settings make printing cleaning simpler.

Foggy Printing&VSDT Printing

Unique two-dimension intelligent foggy and wave-foggy function, and VSDT variable droplet technology, improve printing quality obviously.

Printer Details

Specially Designed Car

The position of the print head can be adjusted according to different printing medias, and anti-collision devices at both ends.

Intelligent Air-heat Dryer

The intelligent drying system is synchronized with printing.The temperature can be adjusted in real time during the printing process.

Fluororubber Pressure Roller

US fluororubber pressure roller prevents static electricity.The unique lifting device can respond to the phenomenon of partial paper bulging during the printing process.

High Precision Platform

The printing platform is controlled within ±7.5 wires and the surface hard oxidation treatment, no deformation for a long time.

THK Mute Guide Rail

Using Japanese THK mute linear guide rail, the movement is more stable and the life is longer.

Chinese Leadshine Motor

The two-way Leadshine brushless motor has higher accuracy, smaller length error and more stable performance.

Large Capacity Ink Reservoirs

Four units of 3L super large capacity ink reservoirs provide ink independently and continuously.

Germany IGUS Ink Chain

Imported Germany IGUS ink chain,high quality, to ensure the good completion of printing work.

Specification

Printer Model		FD5268E
Printhead	Type	EPSON I3200-A1
	Nozzle Qty	8pcs printheads
	Height to Platform	2-5mm
Printing Speed		1pass 400sqm/h
Printing Speed		2pass 195sqm/h
Ink	Color	C M Y K
	Type	Dye Sublimation
	Supply Method	Siphon Positive Pressure Ink Supply
Max Printing Width		2600mm
Printing Media		Transfer Paper
Media Transfer		Auto Media Feeding and Taking-up System,Roll to Roll
Drying Method		External Intelligent Drying system
Moisture Mode		Auto Head Moisturize and Cleaning
RIP Software		Maintop6.0(standard equipped),Photoprint 19,Onyx 19,NeoStampa
Image Format		JPG,TIF,PDF,BMP and etc.
Computer	System	WIN7 64bit/WIN8 64bit/WIN10 64bit
	Hardware	Hard disk:500G or more GPU:ATI Mobility Memory:4G Random Access Memory:8G CPU:Intel 4 i5/i7 processor or above
	Transmit Port	Gigabit LAN
Work Environment		Temperature 18-30℃; Humidity 35-65%
Power	Input Voltage	210-230VAC 50/60HZ 16A
	Printing System	1500W
	Drying System	Max 9000W
Dimension	Printer Dimension	371015001940mm
Dimension	Packing Dimension	390013402040mm
Standard Configuration		Ink Level Alarm System
