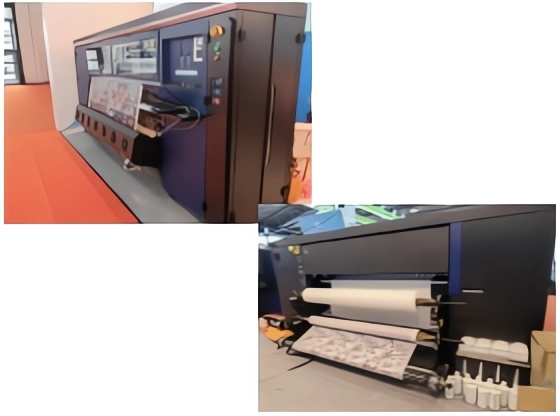

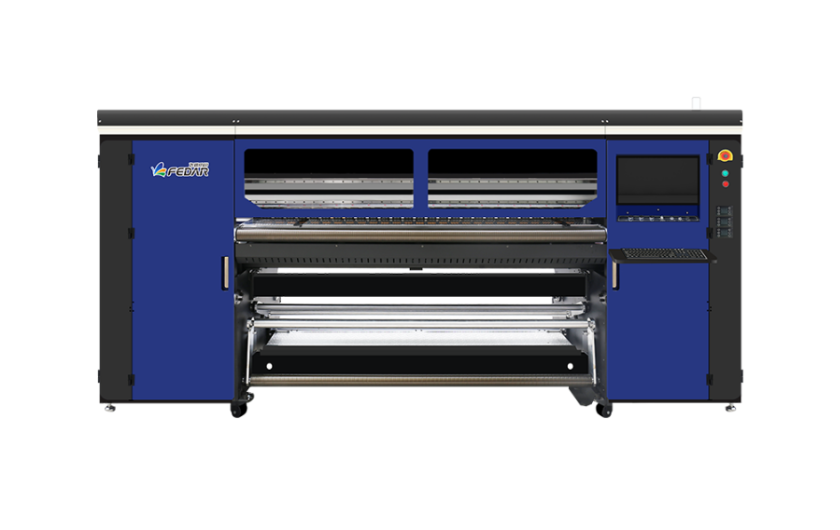

Fedar Sublimation Textile Printer FD61915E-A

Main Features Printer Details Specifications Related Videos Application Inquiry

Main Features

EPSON I3200-A1 Printhead

EPSON 3200-A1 print head has 3200 nozzles, variable drop ink technology, improved printing resolution, improved color restoration degree, built-in ink column, easy to use, and supports up to four levels of gray printing.

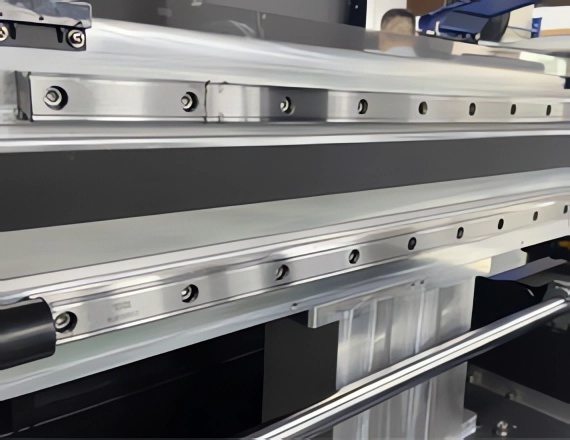

Imported THK Mute Guide Rail

Japanese THK mute guide rail, moving steadily, longer working life, and reducing the resistance and noise of carriage moving during the highspeed printing

Rubber Roller

Specially designed paper transmission roller, which is for thin paper printing,20-30g paper can be printed perfectly without a wrinkle.

Smart Moisturizing Capping Station

Advanced liftable and sealed capping station, ink absorption, ink scraping is accurate.

Printer Details

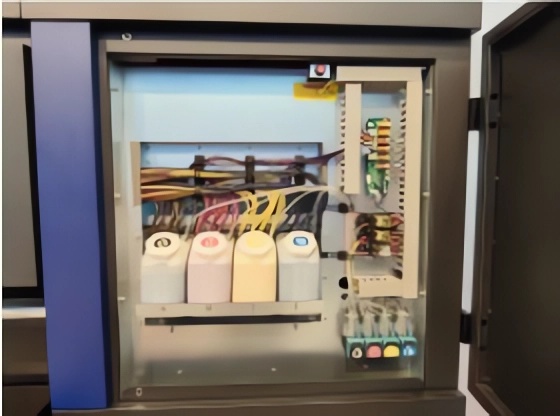

Ink cartridge

This Fedar FD61915E-A Sublimation Printer adopts 15 liters of bulk tanks with an ink-starving alarm system to make sure of a good print job. The powerful continuous supply ink supply system provides support for the improvement of production efficiency, avoiding the frequent shortage of ink in production and the heavy work caused by back-and-forth inspection.

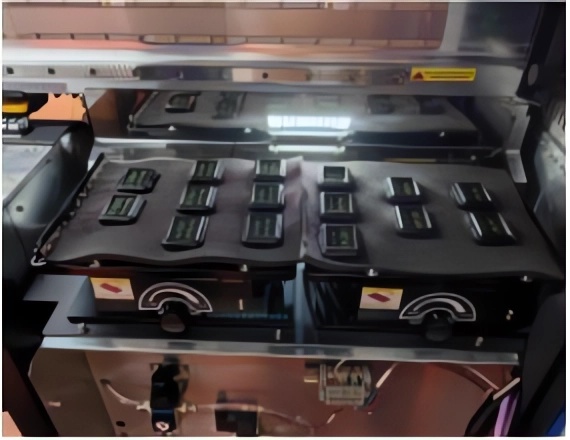

Capping Station

Finished integrated capping station equipped with advanced intelligent nozzle cleaning and moisturizing device, providing safe and convenient nozzle cleaning and maintenance functions, making operation and maintenance more convenient. The working principle of the automatic ink cleaning function: the digital printing machine draws the ink through the nozzle of the ink pump in the ink stack to achieve the purpose of cleaning and moisturizing, preventing the nozzle from clogging.

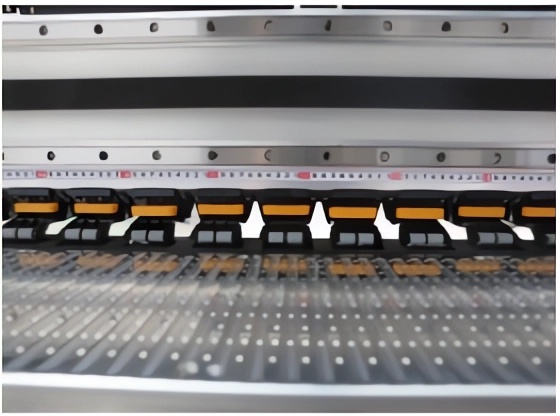

Pinch Rollers

This Fedar Sublimation Printer has a specially designed pinch roller made of Dupont rubber, each roller can be lifted independently to eliminate the wrinkle caused by media moving.

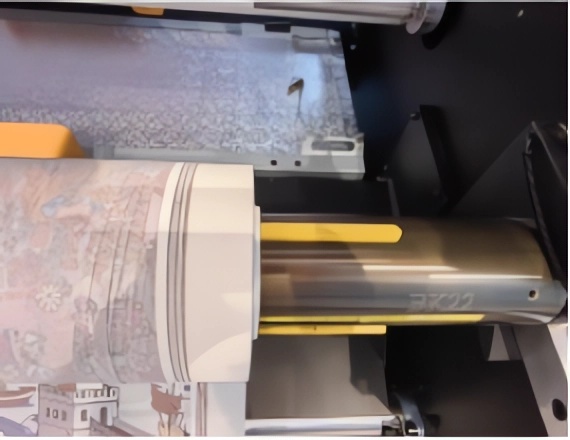

Feeding & Take-up System

This auto-feeding and taking-up device with a tension sensor bar makes the force even and makes the paper smoother. It's simple and convenient to take up printed media.

Computer Holder

Fedar FD61915E-A Sublimation Printer adopts a computer stand with a unique design.

Germany IGUS Ink Chain

Imported German IGUS ink chain, high quality, to ensure the smooth completion of the printing.

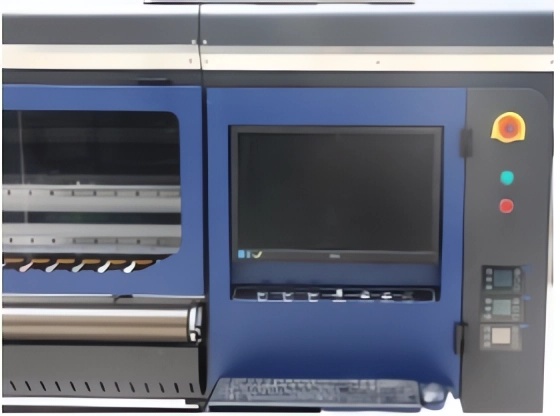

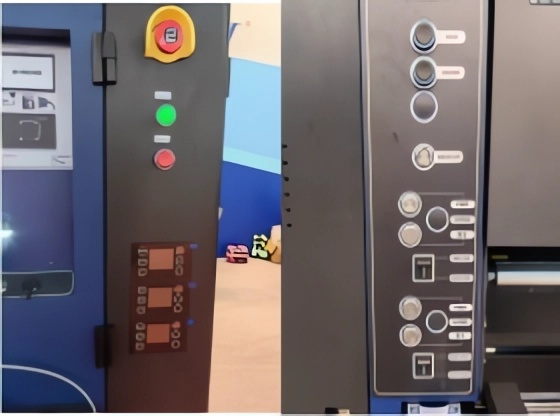

Humanized Control Panel

It can make it easier for operators to operate the machine and find errors, and improve work efficiency.

Intelligent Air-heat Dryer

Further increase drying speed to ensure fast winding at the same time of high-speed output.

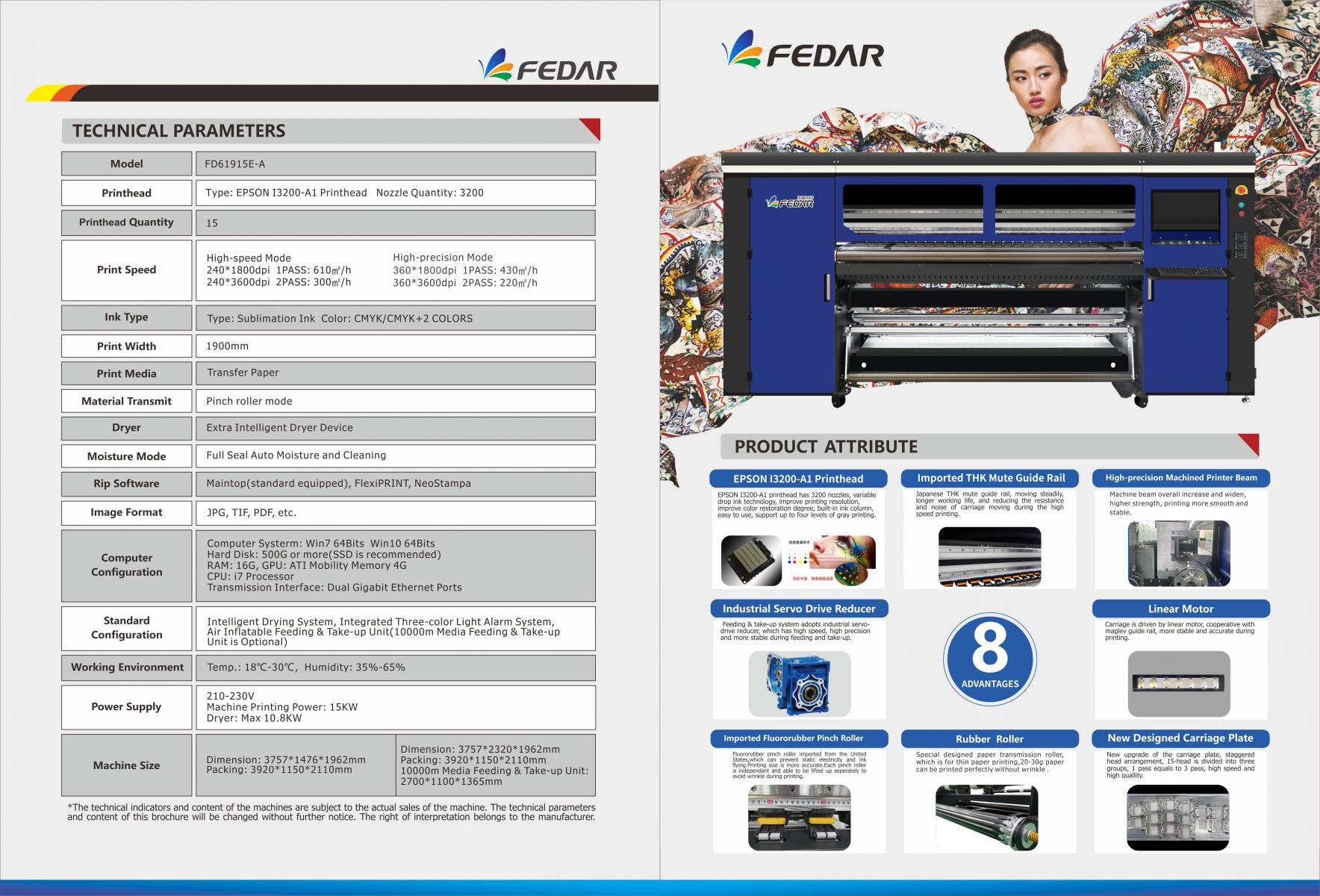

Specifications

Printer Model		FD61915E-A
Printhead	Type	EPSON I3200-A1
	Nozzle Quantity	3200
	Printhead Quantity	15
Printing Speed	1pass 610sqm/h
	2pass 300sqm/h
Ink	Color	CMYK/CMYK+2 COLORS
	Type	Sublimation Ink, Water Based Pigment Ink
	Standard Configuration	Ink Level Alarm System
Max Printing Width		1900mm
Printing Media		Transfer Paper
Material Transmit		Pinch roller mode
Drying Method		Extra Dryer Device
Moisture Mode		Full Seal Auto Moisture and Cleaning
RIP Software		Maintop, Flexiprint, Neostampa
Image Format		JPG, TIF, PDF, BMP, etc.
Computer	System	WIN7 64bit/WIN10 64bit
	Hardware	Hard disk: 500G or more(SSD is recommended) GPU: ATI Mobility Memory 4G Random Access Memory: 16G CPU: Intel i5/i7, Gigabit LAN
	Transmission Interface	Dual Gigabit Ethernet Ports
Work Environment		Temperature 15°C-30°C; Humidity: 35°C-65°C
Power	Input Voltage	210-230VAC 50/60HZ 16A
	Machine Printing Power	15KW
	Dryer Power	Max. 10.8KW
Dimension	Printer Dimension	375714761962mm
	Packing Dimension	392011502110mm

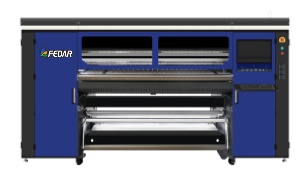

15 Heads & 1.9 m FD61915E-A
