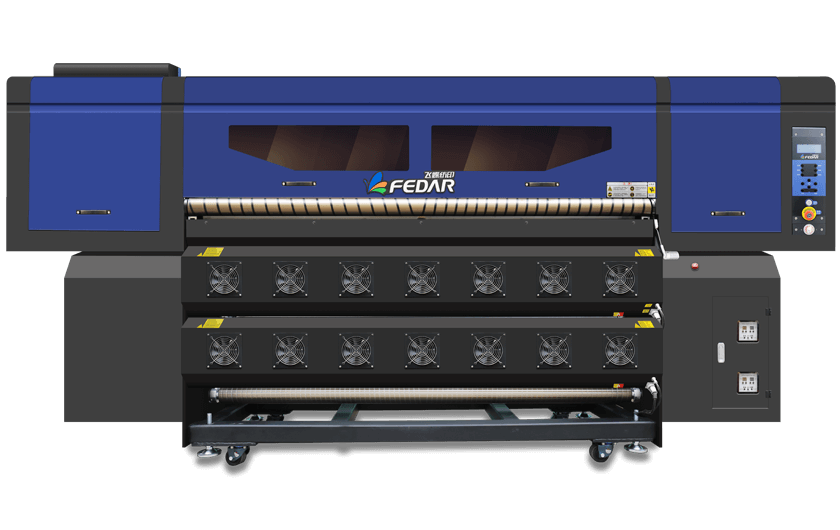

Fedar Sublimation Textile Printer FD61915E

Main Features

Adopt Epson I3200-A1 Printhead

Printed image color level is richer and fuller, and the printing effect is more exquisite.

Smart Moisturizing Capping Station

Advanced liftable and sealed capping station, ink absorption, ink scraping is accurate.

Double THK Guide Rail

Quiet guide rail, high-precision and stable operation, to ensure high-quality output.

High Precision Platform

Industrial grade aluminum alloy platform guarantees long life and efficient printing.

Printer Details

Ink cartridge

Large-capacity ink cartridges, with a secondary ink supply system to avoid frequent addition of ink.

Press Roller

Anti-static design, uniform strength, to ensure smooth paper feeding, simple and easy to adjust.

Nozzle Arrangement

Self-developed arrangement, printhead free adjustment, and after-sales is more convenient .

Germany IGUS Ink Chain

Imported German IGUS ink chain, high quality, to ensure the smooth completion of the printing.

Take-up system

Million meter take-up system can be upgraded to ensure accurate and stable delivery of materials.

Chinese Leadshine Motor

Leadshine servo brushless integrated motor, which is linear decoded, high resolution, low length error, more stable.

Intelligent Air-heat Dryer

Further increase drying speed to ensure fast winding at the same time of high-speed output.

Humanized Control Panel

It can make it easier for operators to operate the machine and find errors, and improve work efficiency.

Specification

Printer Model		FD61915E
Printhead	Type	EPSON I3200-A1
	Nozzle Qty	15pcs printheads
	Height to Platform	2-5mm
Printing Speed	1pass 550-610sqm/h
	2pass 275-305sqm/h
Ink	Color	C M Y K
	Type	Dye Sublimation
	supply method	Siphoning
Max Printing Width		1900mm
Printing Media		Transfer Paper
Media Transfer Method		Inflatable Roller Auto Feeding and Take-up System
Drying Method		External,Intelligent and air-heat Integrated drying system
Moisture Mode		Fully sealed auto moisturing and cleaning
RIP Software		Maintop6.0,Photoprint 19,Onyx 19,NeoStampa
Image Format		JPG,TIF,PDF,BMP and etc.
Computer	System	WIN7 64bit/WIN10 64bit
	Hardware	Hard disk:500G or more GPU:ATI Mobility Memory:4G Random Access Memory:8G CPU:Intel i7 processor or above
	Transmit Port	Gigabit Ethernet Port
Work Environment		Temperature 18-30℃; Humidity 35-65%
Power	Input Voltage	210-230VAC 50/60HZ 16A
	Printing system	2200W
	Drying system	Max 10800W
Dimension	Printer Dimension	371015001940mm
	Packing Dimension	390013401980mm

15 Heads & 1.9m FD61915E
